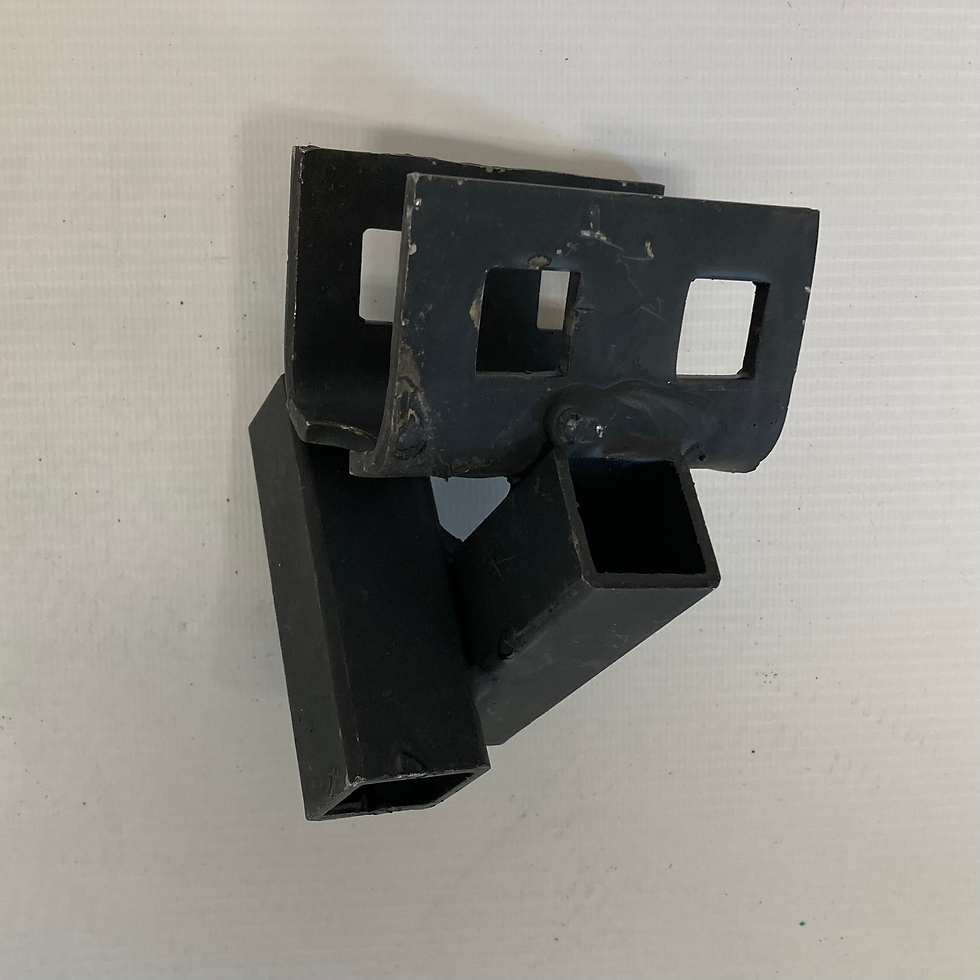

Cross Drive Anchor

Cross Drive Anchor

Cross Drive anchors are used primarily in solid rock or rocky soil.  (Not for use in sandy soil)

  • Cross Drive Anchor Installation Instructions:

    1.)  Position the cross-drive anchor head on the ground with the u-shaped head perpendicular to the frame.

    2.)  Insert a rod into each square tube of the anchor head.

    3.)  Drive each rod into the ground until a maximum of 2” of rod is exposed above the square tubes. (If installing in solid rock, drill 3/4” holes in the rock the length of the rods at 45° angles, using the anchor head as a locating guide)
